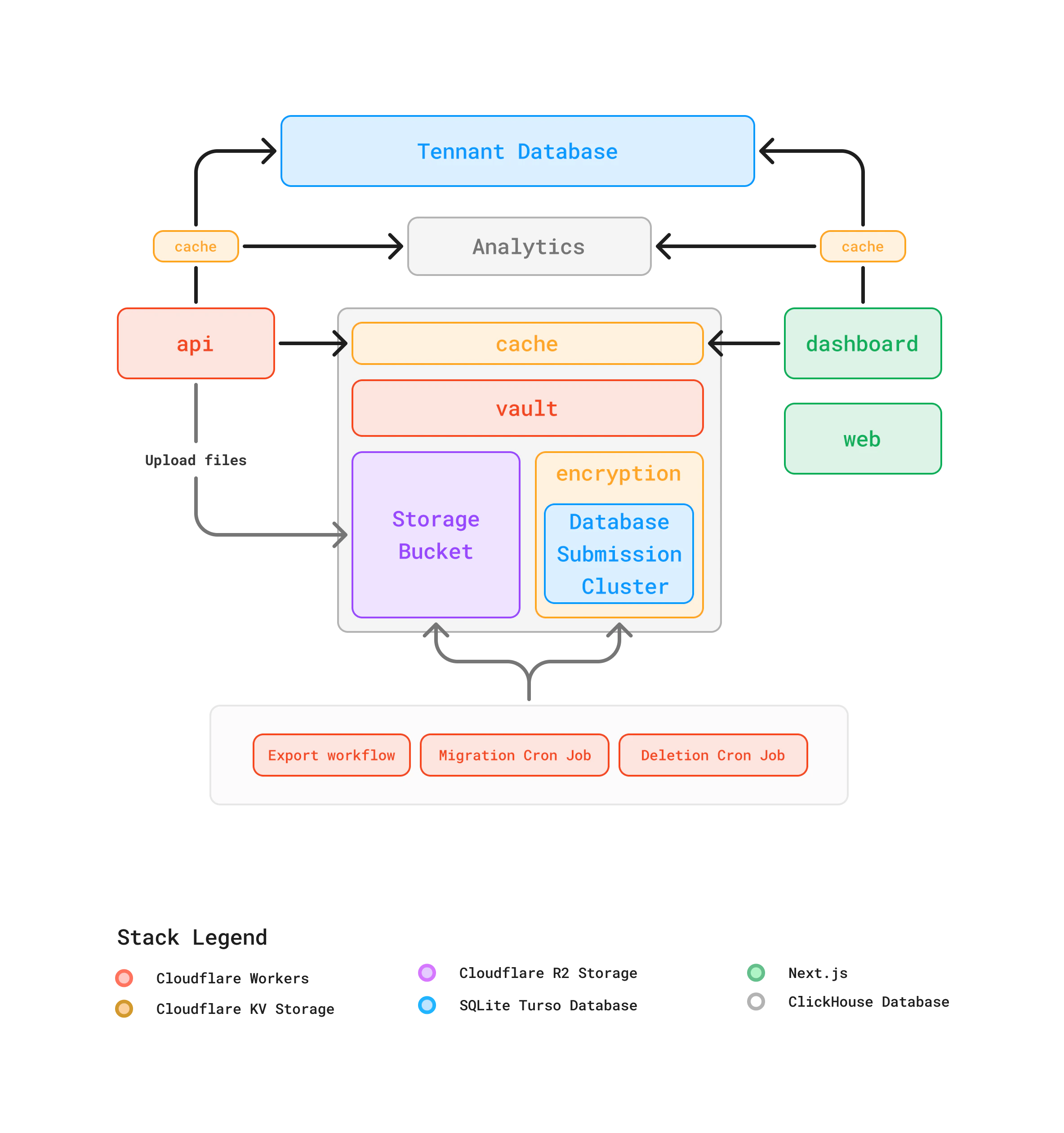

Formizee Architecture Formizee Architecture

​
Databases

We use Turso with LibSQL for the databases.

​
Tenant Database

The Tenant Database is the primary data store for all tenant-related information. This serves as the central source of truth for user configurations, relationships, and settings.

​
Database Submission Cluster

The Database Submission Cluster is composed of a main shared-submissions database, this database is the default source of the submissions. Also, if a workflow detects more than 10.000 submissions of a single endpoint inside the shared-submissions database, the workflow will perform a migration to a new database specifically for that endpoint
  • Purpose: Lightweight and scalable database cluster for handling high volumes of submissions efficiently.
  • Security: This cluster is isolated, and is only accessed from the Vault service.

​
Storage

The Storage Bucket is a distributed object store for file uploads and other unstructured data. We use Cloudflare R2 in production.

​
Local Development

As a alternative, since we use the S3 protocol, when you setup the docker container, this includes a minio image already configured to be compatible with the stack.

​
Services

​
API

The API is it self a REST API that allows the user to manage the entire workspace. But also is the responsible of handle the upload of submissions.

​
Vault

The Vault is responsible for securely managing submissions:
  • Technology: Cloudflare Workers
  • Security: We use a AES-GCM key for each endpoint created for store the submissions.
  • Caching: Temporary storage to accelerate secure operations.

​
Dashboard

The Dashboard is the user-facing application that provides insights and control over tenant data.
  • Technology: Next.js
  • Features:
    • Real-time analytics visualization.
    • Management of workflows, configurations, and user data.

​
Analytics

We use Tinybird (Clickhouse) as analytics and metrics service See /internal/analytics and /internal/metrics for the source code This architecture ensures scalability, security, and efficiency in handling form submissions, tenant management, and analytics. If you need additional details or diagrams, feel free to reach out!
